DF800
DESCRIPTION

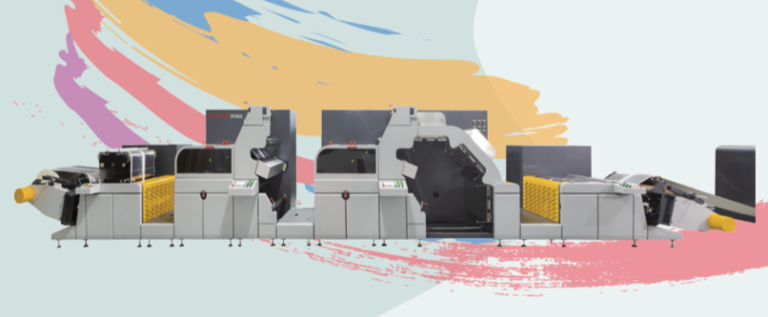

DF800 is specially designed for converting and finishing digital packaging printing products quickly and economically. It’s modular design, fully servo driven tension control system, and intelligent HMI interface, making this unit suitable for small and medium orders. The DF800 can be used for any offline or inline finishing process. Features include lamination, UV/LED UV varnishing, coating, slitting, sheeting and stacking. The DF 800 is the professional finishing solution when connected inline HP Indigo 25K digital printing system. The HP Indigo 25K is widely used for flexible packaging, packaging lamination, advertisement, gift wrap, wall paper, decorative paper, photography, publishing, etc.
TECHNICAL SPECIFICATIONS
| Max web width | 800mm |
| Substrate | 12-300µm |
| Max unwind diameter | 1000mm |
| Max rewind diameter (dual rewinding) | 700mm |
| Max mechanical speed | 80m/min |
| Production speed | 45-60m/min, it will depend process |
| Slitting accuracy | ±0.15mm |
| Sheeting length | 100-1000mm |
| Sheeting tolerance | ±0.15mm |
| Air supply | 8bar |
| Rating voltage | 3PH+N+PE |
| Machine weight | 5T |
– Modular design, fully servo driven tension control system, and intelligent HMI
interface.
– Suitable for small and medium orders.
– Can be used for any o-line or in-line nishing process. Features include
lamination, UV/LED UV varnishing, coating, slitting, sheeting and stacking.
