SDD Digital Die Cutting System
DESCRIPTION

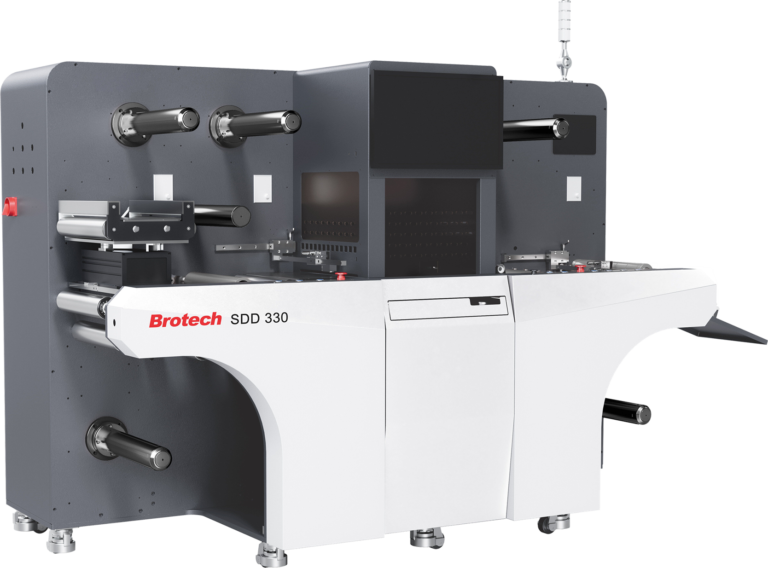

SDD 330 digital die cutting system(plotter) is a newly developed digital die-cutting equipment with automatic camera system. Compared with rotary die cutting or flat die cutting, and it is more flexible and suitable for processing small orders, customized orders. It integrates dry laminating, digital die cutting, slitting and sheeting in one unit.
TECHNICAL SPECIFICATIONS
| Max. Web Width: | 330mm |
| Max. Unwind Diameter： | 500mm |
| Max. Rewind Diameter: | 500mm |
| Max. Cutting speed | 12m/min(Depends on the pattern design) |
| Max. Die Cutting Width | 320mm |
| Die Cutting tolerance | ±0.1mm |
| Max. Slitting speed | 60m/min |
| Digital Cutting Repeat Length | 40-700mm |
| The min width between two blades | 40mm |
| Recognition Mark | Square, Dot, QR Code, Bar Code etc. |
| Supported Formats | HPGL、DXF、AI、PDF、CF2 |
| Machine Weight | 1300KG |
| Machine Size | 2000mm×1150mm×1600mm |
FEATURES & ADVANTAGES
Immediate job change, suitable for short order and urgent orders.
Small foot print comparing to traditional digital die-cutting machine.
Full servo design, simple operation, rapid replacement of accessories.
Support for remote monitoring, and quickly troubleshoot and problem solve.
Modular design, can support single-seat-cutting head and multiple-seat cutting heads.
Automatic camera scanning QR code fast job changing.
APPLICATIONS
All digital print finishing electronics, cosmetics, packaging, pharmaceutical, toys, logistics, garments, security.
SUBSTRATES
Standard material thickness is 35-280µm of film / paper / adhesive material / light carton board paper, other special materials need to be tested.
