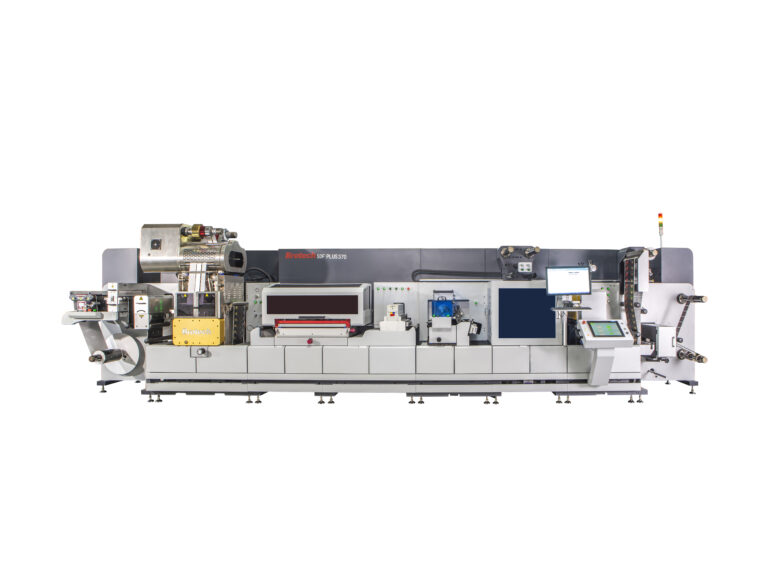

SDF PLUS Smart Modular Designed Digital Printed Label Converting & Finishing System
DESCRIPTION
-Unique Modular & Platform Design.
– Flexible Work ow Direction (Left to Right or Right to Left).
– Interchangeable Flexo Printing & Die-Cutting Heads (330/370/420/520).
– Rotatable 90°Hot Stamping Head with 45
-Ton Pressure.
– Optional: Digital Embellishment Unit, Turn Bar, Delam&Relam,Lamination in
Registration, Laser Die Cutting Unit, Flatbed Die Cutting Unit.
TECHNICAL SPECIFICATIONS
| Model | SDF PLUS 330 | SDF PLUS 370 | SDF PLUS 420 | SDF PLUS 520 |
| Max web width | 340 mm | 380 mm | 430 mm | 530 mm |
| Max rewind diameter | 600 mm | 600 mm | 600 mm | 600 mm |
| Max unwind diameter | 800 mm (Optional 1000 mm) | 800 mm (Optional 1000 mm) | 800 mm (Optional 1000 mm) | 800 mm (Optional 1000 mm) |
| Max die cutting width | 330 mm | 370 mm | 420 mm | 520 mm |
| Semi-rotary die cutting max speed | 100 m/min | 100 m/min | 100 m/min | 100 m/min |
| Semi-rotary max repeat length | 558.8 mm | 558.8 mm | 558.8 mm | 558.8 mm |
| Flat bed die cutting max mechanical speed | 130 m/min | 130 m/min | 130 m/min | 130 m/min |
| Die cutting tolerance | ±0.15 mm | ±0.15 mm | ±0.15 mm | ±0.15 mm |
| Air supply | 8 bar | 8 bar | 8 bar | 8 bar |
| Rating voltage | 3 PH+N+PE | 3 PH+N+PE | 3 PH+N+PE | 3 PH+N+PE |
| Optional Rotary Silkscreen Unit | Optional Flat Bed Hot Stamping /Die cutting Unit | Optional Flat Bed Hot Stamping /Die cutting Unit | Optional Flat Bed Hot Stamping /Die cutting Unit | Optional Flat Bed Hot Stamping /Die cutting Unit |
| Optional Delam And Relam/Turn Bar | Optional Automatic Slitting Unit | Optional Automatic Slitting Unit | Optional Automatic Slitting Unit | Optional Automatic Slitting Unit |
| Optional Laser Die Cutting Unit | Optional Digital White Unit | Optional Digital White Unit | Optional Digital White Unit | Optional Digital White Unit |
| Optional Flat Bed Screen Printing | Optional Digital Metal Unit | Optional Digital Metal Unit | Optional Digital Metal Unit | Optional Digital Metal Unit |
Flat Bed Hot Stamping Module
-National invention patented 90° rotatable hot stamping head.
-National invention patented flat bed pressing technology.
-Servo driven control for saving, upgradable to registered holographic stamping.
-Web and cross web direction of hot foil stamping.
Suitable for magnetic cylinder or solid cylinder.
Full-rotary Flexo Unit
-Servo driven tension control, quick removal of ink cassette, easy mounting of doctor blade.
-Multi-function flexo unit for laminating, varnishing, cold foil or printing.
Semi-rotary Flexo Unit
-Fast and easily changing for semi-rotary and full-rotary, suitable for UV/LED UV spot varnishing.
-Optional hot air(I/R) dryer for water base priming or varnishing.
Semi-rotary Die Cutting Unit
-Servo driven tension control.
-Magnetic cylinder or solid cylinder.
Moveable Touch Screen
-Operator friendly, maximize operation efficiency.
Slitting Unit / Automatic Slitting Unit
-Stable and accurate slitting.
-Optional shear knife slitting or razor blade slitting.
-Optional Rotary Silkscreen Unit
-Optional Delam and Relam / Turn Bar
-Optional Laser Die Cutting Unit
-Optional Flat Bed Screen Printing
-Optional Flat Bed Die Cutting
-Optional Automatic Slitting Unit
