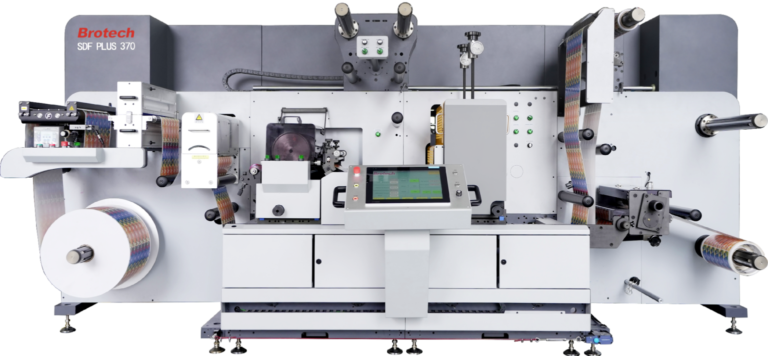

SDF PLUS SPEDMASTER
DESCRIPTION
This new generation of flagship solution can level up your production speed to 95-110m/min under semi-rotary mode, 150m/min under full rotary mode.It’s fully modularization and platformization design enable economic production in small runs. It also supports Automatic distortion calculation,Remote diagnose base on internet,Platform exchangable between flexo station and die cutting station,Two working flow direction (Left toright, right to left) ,One platform adapts to 370/430/530 web width.
TECHNICAL SPECIFICATIONS
| Model | SDF 370 | SDF 430 | SDF 530 |
| Max web width | 380mm | 430mm | 530mm |
| Max unwind diameter | 800mm | 800mm | 800mm |
| Max upper rewind diameter | 600mm | 600mm | 600mm |
| Max lower rewind diameter | 600mm | 600mm | 600mm |
| Max die cutting width | 370mm,can be upgraded to 420mm | 370mm,can be upgraded to 420mm | 370mm,can be upgraded to 420mm |
| Full rotary max mechanical speed | 150m/min | 150m/min | 150m/min |
| Semi-rotary max speed | 95-110m/min | 95-110m/min | 95-110m/min |
| Semi-rotary repeat length | 30%-80% of the magnetic cylinder perimeter | 30%-80% of the magnetic cylinder perimeter | 30%-80% of the magnetic cylinder perimeter |
| Die cutting precision accuracy | ±0.15mm | ±0.15mm | ±0.15mm |
| Air supply | 8bar | 8bar | 8bar |
| Rating voltage | 3PH+N+PE | 3PH+N+PE | 3PH+N+PE |
| Machine weight | 4T | 4T | 4T |
FUNCTIONING UNITS
Standard Features:
Full-rotary flexo unit, for printing, spot varnish, super varnish, cold foil, lamination.
Full-rotary/Semi-rotary die cutting unit, matrix remove, slitting and dual rewind. Suitable for magnetic cylinder or solid cylinder.
FEATURES & ADVANTAGES
Fully automatic servo driven flexo unit, for flexo printing, cold foil, lamination, varnish and super varnish. UV/LED UV dryer with chilling roller to keep stable tension and steady temperature at all speeds.
Servo driven die cutting unit is with automatic registration system, can be exchanged between full-rotary and semi-rotary mode. Suitable for short run or medium run jobs especially for digital printed labels.
Hot air(I/R) dryer is as option for water-based primer, coating, lamination.
APPLICATIONS
All digital print finishing electronics, cosmetics, packaging, pharmaceutical, toys, logistics, garments, security.
SUBSTRATES
Standard material thickness is 35~280µm of film/paper/adhesive material/light carton board paper, other special materials need to be tested.
